Description


Specification
Typical Capacity	280Ah
Typical Energy	896Wh
Operating Voltage	2.5~3.65V	Cell Temp. T>0℃
	2.0~3.65V	Cell Temp. T≤0℃
Impedance (1kHz)	0.17±0.05mΩ	Fresh Cell (40%SOC)
Shipping Capacity	112±1Ah	40%SOC
Residual Capacity Loss	≤3.0%/Month	Fresh Cell after 3 Month, 40%SOC, 25±2℃，
Operating Temperature(Charging)	0~60℃
Operating Temperature(Discharging)	-20~60℃
Storage Temperature	-30~60℃	Storage Ambient Humidity<85%ROH, No Condensation
Rest SOC	≥5%	SOC Interval without Load or Charging
Applicable Altitude	≤2000m
Cycle Life	≥6000Cycles	25±2℃, Normal Charge/Discharge
Standard Charge Power	0.25P	25±2℃
Standard Charge Voltage	Cell Max. Voltage 3.65V
Standard Charge Method	0.25P Constant Power Charge to 3.65V, Rest 5 Min, 0.1P Constant Power Charge to 3.65V.
Standard Charge Temperature	25±2℃	Cell Temperature
Absolute Charging Temperaure(Cell)	0~60℃
Absolute Charging Voltage	Max. 3.65V
Standard Discharge Power	0.25P	25±2℃
Max. Continuous Discharge Power	0.5P
Discharge Cut-off Voltage	2.5V(T>0℃), 2.0V(T≤0℃)
Standard Discharge Temperature	25±2℃	Cell Temperature
Absolute Discharge Temperature	-20~60℃
Capacity @55℃	≥280Ah
Capacity @-20℃	≥155Ah
Cell Weight	5.34±0.30Kg
Cell Dimension(TWH)	71.7±0.8173.9±0.8207.2±0.8mm

Additional information

Weight	N/A
Dimensions	N/A

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “CATL LiFePO4 280Ah Cell”

Shipping & Delivery

Deliverable Areas
Asia, Africa, Americas, Europe, and Oceania, BUT except for some offshore islands only connected by airline.
Included but not limited to the followings:
Canary Islands, Spain;
Sardinia, Elba, Italy;
……
Feel free to contact us to check the availability for you before your order placed if your delivery address is in an island.
Shipping Cost
Free shipping for all orders from Asia, Europe, …, subject to adjustment based on your destination.
Shipping Time
3.1. Ship from China: It takes 1~2 days for order process time and by airfreight 15~20 days or by seafreight 35~50 days for delivery.
3.2. Ship from Europe: All orders will be delivered to your door by local logistic service, such as DPD, GLS, DHL etc, from local warehouses.
It takes 1-2 business days for order processing time and 5-7 calendar days for transit.
How to track my order?
We will send a link and a tracking number to your registered email address with this website for you to track the transit progress.
Do you ship internationally?
We currently deliver orders from Continental Europe either from a warehouse in China or a local warehouse, while orders from other regions, we ship currently only from a warehouse in China.
For more Information, feel free to contact us.
Monday to Friday 9:00 AM ~ 5:00 PM CET (2:00 PM ~ 11:00 PM UTC+8)

Datasheet

INQUIRY

Any Questions, Contact Us

We will Get Back to You within 12 Hours, or You Add Our WhatsApp Number +86 152 0755 1132 for Instant Message (UTC+8).

-40%New

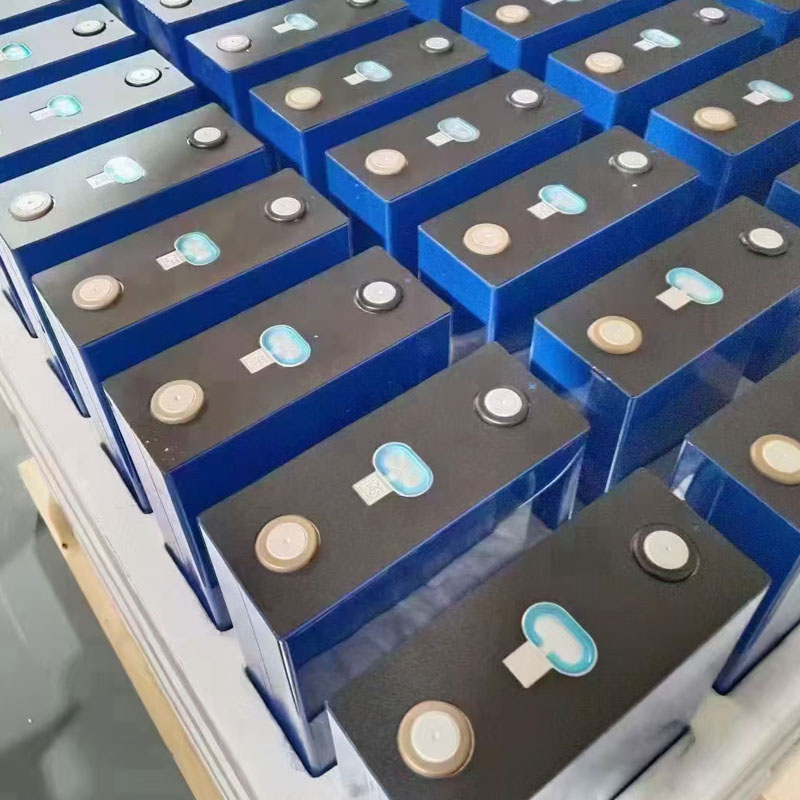

CATL LiFePO4 280Ah Cell

Name: CATL LiFePO4 280Ah Cell
SKU: CATL 280AH
Availability: InStock

Price range: €386.99 through €2,943.99Pack

Quantity

Ship From

SKU: CATL 280AH Category: LiFePO4 Prismatic Cells


Specification
Typical Capacity	280Ah
Typical Energy	896Wh
Operating Voltage	2.5~3.65V	Cell Temp. T>0℃
	2.0~3.65V	Cell Temp. T≤0℃
Impedance (1kHz)	0.17±0.05mΩ	Fresh Cell (40%SOC)
Shipping Capacity	112±1Ah	40%SOC
Residual Capacity Loss	≤3.0%/Month	Fresh Cell after 3 Month, 40%SOC, 25±2℃，
Operating Temperature(Charging)	0~60℃
Operating Temperature(Discharging)	-20~60℃
Storage Temperature	-30~60℃	Storage Ambient Humidity<85%ROH, No Condensation
Rest SOC	≥5%	SOC Interval without Load or Charging
Applicable Altitude	≤2000m
Cycle Life	≥6000Cycles	25±2℃, Normal Charge/Discharge
Standard Charge Power	0.25P	25±2℃
Standard Charge Voltage	Cell Max. Voltage 3.65V
Standard Charge Method	0.25P Constant Power Charge to 3.65V, Rest 5 Min, 0.1P Constant Power Charge to 3.65V.
Standard Charge Temperature	25±2℃	Cell Temperature
Absolute Charging Temperaure(Cell)	0~60℃
Absolute Charging Voltage	Max. 3.65V
Standard Discharge Power	0.25P	25±2℃
Max. Continuous Discharge Power	0.5P
Discharge Cut-off Voltage	2.5V(T>0℃), 2.0V(T≤0℃)
Standard Discharge Temperature	25±2℃	Cell Temperature
Absolute Discharge Temperature	-20~60℃
Capacity @55℃	≥280Ah
Capacity @-20℃	≥155Ah
Cell Weight	5.34±0.30Kg
Cell Dimension(TWH)	71.7±0.8173.9±0.8207.2±0.8mm
